Thursday 4 January 2018

How to use VVDI2 Commander and VVDI PROG to make a new key for Audi A6L

Here is the procedure of making a new key for Audi A6L all key lost by using VVDI2 Commander and VVDI PROG Programmer together.

Step 1. Open Audi A6L engine cover, find the engine and disassemble it. Remove the engine ECU.

How to use VVDI2 Commander and VVDI PROG to make a new key for Audi A6L-1

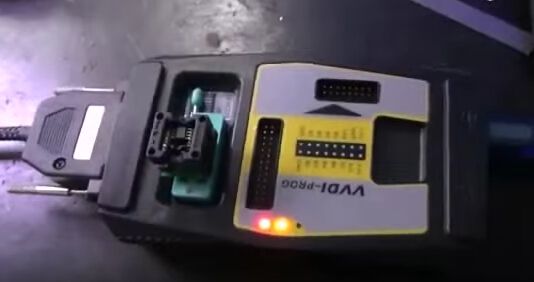

Warm up the ECU edge to open ECU safely, find the 95320 chip as below, desolder the chip and put it on VVDI PROG to read data.

How to use VVDI2 Commander and VVDI PROG to make a new key for Audi A6L-2

How to use VVDI2 Commander and VVDI PROG to make a new key for Audi A6L-3

Step 2. Open VVDI PROG software, choose correct “Type”, “Brand” and “Chip” at right side. Click “New” and “Read” then “Save” to save the bin file. Remove the chip 95320 from VVDI PROG, solder it back to engine ECU and reinstall ECU to Audi A6L.

Step 3. Open Xhorse VVDI2 software and choose “Audi” option. Click “Special Function” on top menu bar. Then click “EEPROM Data Processing Tool”. First you need to calculate the CS code: choose “EEPROM Simons PPDIx- Reset component protection data”.

How to use VVDI2 Commander and VVDI PROG to make a new key for Audi A6L-4

Step 4. Click “Read” and load the bin file that is read out just now, click “Open”. And you can see the CS code as picture, record it with your camera or pen.

How to use VVDI2 Commander and VVDI PROG to make a new key for Audi A6L-5

Next is to calculate the PIN code. Back to “EEPROM Data Processing Tool” dropdown menu and choose “EEPROM Simons PPDIx- Security Access Code”. Click “Read” and load the bin file, PIN code is read out. Record the code.
How to use VVDI2 Commander and VVDI PROG to make a new key for Audi A6L-6

Step 5. Back to Xhorse VVDI2 software main menu; choose “Key Learning” and “Audi A6/A7” option. Input the CS code and PIN code then you can see the buttons “Learning Key” and “Generate Dealer Key” are working.

How to use VVDI2 Commander and VVDI PROG to make a new key for Audi A6L-7
Put a new remote key chip into VVDI2 coil. Click “Generate Dealer Key” and it will show success soon.

Step 6. This step is going to learn key. Disconnect the short insurance line and connect it again.

How to use VVDI2 Commander and VVDI PROG to make a new key for Audi A6L-8

Now take out the remote chip and put it close to car’s ignition data coil. Open and close the car door. Turn on ignition and press down brake. Click “Learning Key” and you can see learning success.

Step 7. Read out EZS-EEPROM (J518) EEPROM to generate the OEM remote control.
Choose chip type “9S1201128” then save EZS-EEPROM (J518) EEPROM file. And start to generate the OEM remote control.
Choose the EEPROM file to open then put the remote control vertically into VVDI2 coil. Click “Open” and “Next”.

How to use VVDI2 Commander and VVDI PROG to make a new key for Audi A6L-9

The OEM remote control is generated successfully! Assemble it to the new key and test. Now Xhorse VVDI PROG Programmer and VVDI2 Tool together make a new key successfully for Audi A6L all key lost! The car will start and the remote function will work!

How to use VVDI2 Commander and VVDI PROG to make a new key for Audi A6L-10

Enjoy!

Xhorse VVDI2 Commander on sale: http://www.obd2shop.co.uk/wholesale/top-vvdi2-commander-key-programmer.html

Xhorse VVDI PROG on sale: http://www.obd2shop.co.uk/wholesale/latest-vvdi-prog-programmer.html

Wednesday 29 November 2017

SKP1000 Car Key Programmer Functions List

This article mainly introduces the functions of SKP1000 Car Key Programmer.

Clear key memory;
Program keys, proximity keys, smart key, flip keys;
Program after-market and OEM keys;
Read keys from immobilizer memory
New mechanical key number programming;
Vehicle identification key programming;
Reset ECU& Reset immobilizer;
New remote controller programming;
Immo PINCODE reader for many vehicles and no need pincode when programming keys for many vehicles
Mileage adjustment via OBD;
With full and strong database for the most important vehicle makes;
Remote assistance
EEPROM chip read and immobilizer initialization;
EPB(Electric park brake);
throttle body adjustment
Oil/Service reset;
EEPROM/PIC adapter

Below show the detail of functions

Choose "Immobilizer", then the car brand shown as below.

Mileage adjustment via OBD
Choose "Adjust mileage", then the car brand shown as below.
New remote system programming
Choose "Remote system", then the car brand shown as below.
Oil/Service reset
Choose "Maintenance", then the car brand shown as below.
Throttle body adjustment
Choose "ETC", then the car brand shown as below.
EPB(Electric park brake)
Choose "EPB", then the car brand shown as below.
Woks on Changhe, Ford, Suzuki, Mazda, Chery, Kia, Nissan and Hyundai.
Immo PINCODE reading
Immo PINCODE reader for many vehicles and no need pin code when programming keys for many vehicles.


SKP1000 Car Key Programmer sales on obd2shop.co.uk:
http://www.obd2shop.co.uk/wholesale/skp1000-tablet-auto-key-programmer.html

Friday 17 November 2017

How to use SKP1000 Read Chevrolet Cruze 2015 Pin Code and Program Folding Key

This post shows how to use SKP1000 Read Chevrolet Cruze 2015 Pin Code and Program Folding Key, the following is the detail guide.

Key information:
Original key: 3-button folding key
Frequency: 315MHz
Chip type: ID46 chip
Device to program: SKP 1000 tablet auto key programmer

Step by Step guide:
Step 1: Read Pin Code
Connect SKP1000 host with vehicle via OBD socket



Select Immobilizer function and then GM brand

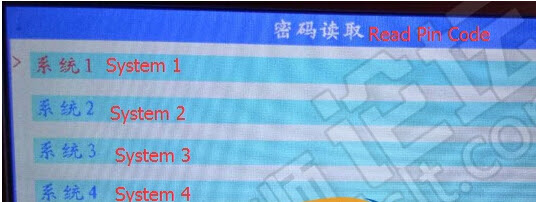

Select Chevrolet->Read Pin Code -> System 1

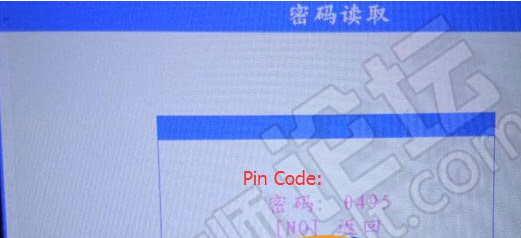

Read 4-digit Pin code success



Step 2: Program Key
In Chevrolet menu, select Cruze->Program Key


Turn ignition switch to ON position
Press YES to continue



SKP1000 key programmer require to enter 4-digit security pin code just read



Configuring system, please wait for about 10 minutes

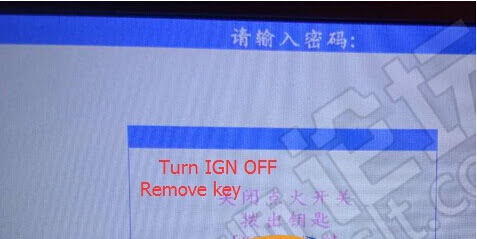

Turn ignition OFF
Remove key

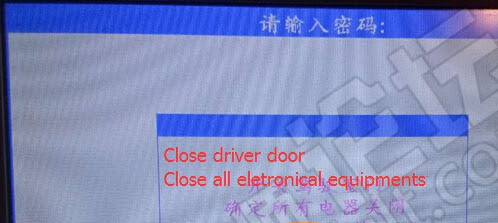

Close the door on the driver side
Close all electronic equipments

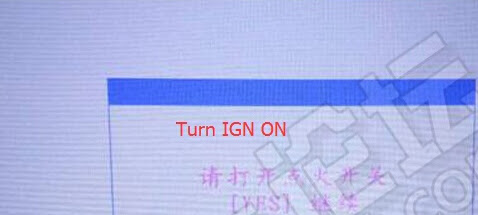

Turn ignition ON
Press YES to go on

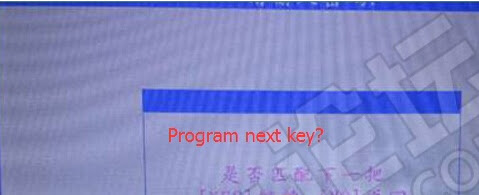

SKP-1000 asks whether to program next key?
Press YES to continue



Turn ignition OFF

Remove key

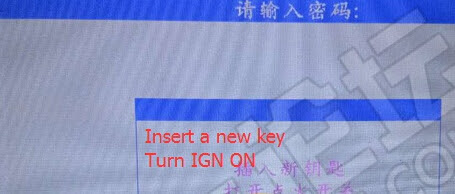

Insert a new key
Turn ignition ON
Press YES



Follow steps above to program next key

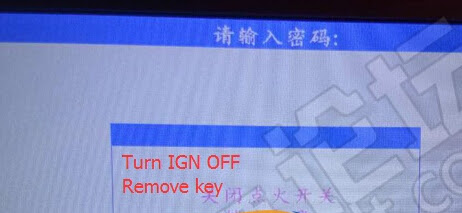

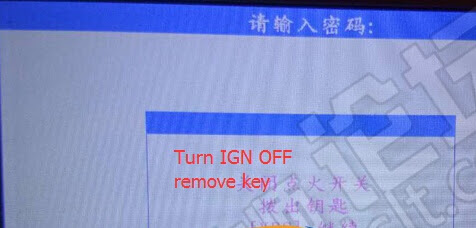

Turn ignition OFF
Remove key



Program next key? Press NO
Configuring system for 45 seconds

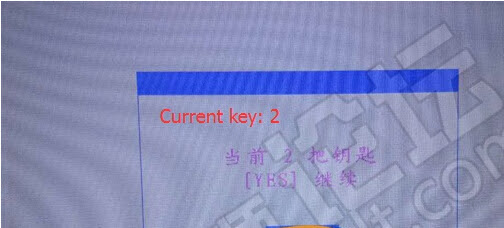

Current Key: 2

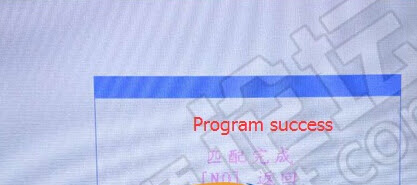

SKP1000 program Cruze 2015 folding key success.



Done!

Hope it helps!

www.obd2shop.co.uk

http://blog.obd2shop.co.uk/guide-skp1000-read-chevrolet-cruze-2015-pin-code-and-program-folding-key/

Saturday 28 October 2017

How to update skp1000 Firmware step by step

Topic: SKP1000 Tablet Auto Key Programmer update Firmware Procedure

Tip: 1. Before update firmware, please take out the TF card and insert it into the card reader, then plug into the computer USB port. Double click "My Computer", find out " local Disk (H:), right click to choose "Format".
2. Tick on the "Quick format" and click "Start.

After complete format, go to the official site to download the update file, then copy
and paste the file into the TF card, after finish, plug the TF card into the machine, power on the machine to the main interface.
Click on "Firmware update" to update the system or the Adaptor.

Update Firmware Procedure-1

























Firstly choose "System firmware", press [Yes], the procedure shown as below:
Update Firmware Procedure-2














Update Firmware Procedure-3


















Update Firmware succeed shown as below, Press [NO] to back.
Update Firmware Procedure-4

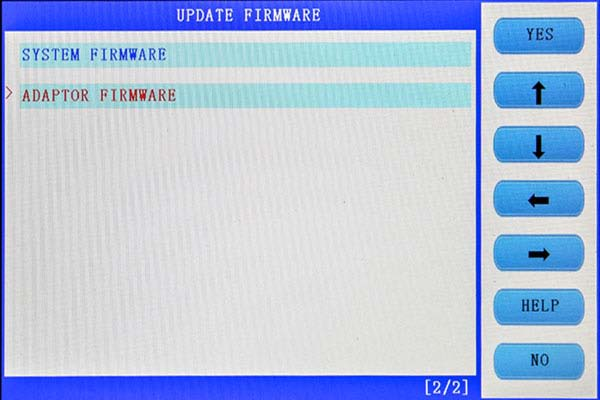

Choose " Adapter update", after finish, reboot the machine to go on use SKP1000.

Update Firmware Procedure-5

























Done.
Any question, please contact your supplier.

More information you can visit: http://www.obd2shop.co.uk/wholesale/skp1000-tablet-auto-key-programmer.html

http://www.obd2shop.co.uk/

Friday 27 October 2017

How to use SKP1000 to program key on Hyundai SONATA 8

Topic: How to program smart key on Hyundai SONATA 8
Step-by-step procedure shows as below:

1. connect the main cable to the machine, then plug the OBDII adapter to the car.
Power on the SKP1000 machine, until you see the LOGO, press [YES] to main menu, choose "Immobilizer", press "Yes" to vehicle list.

 How to use SKP1000 to program key on Hyundai SONATA 8-1
















2. Choose model: Hyundai, press [Yes] to enter.
3. Choose "Smart key", press [Yes] to enter.
 How to use SKP1000 to program key on Hyundai SONATA 8-2
















4. Choose " by Vehicle", press [Yes] to enter.
 How to use SKP1000 to program key on Hyundai SONATA 8-3
















5. Choose "SONATA 8 (with slot), press [Yes] to enter.
 How to use SKP1000 to program key on Hyundai SONATA 8-4
















6. Choose "Smart key (with slot), press [Yes] to enter.
 How to use SKP1000 to program key on Hyundai SONATA 8-5














7. Follow the tip to turn off ignition, press [Yes]
 How to use SKP1000 to program key on Hyundai SONATA 8-6















8. Follow the tip to open the door and close for one time, press [Yes].
 How to use SKP1000 to program key on Hyundai SONATA 8-7














9. Choose "Program Smart Key", press [Yes]
 How to use SKP1000 to program key on Hyundai SONATA 8-8














10. Follow the tip, insert the smart key into the slot, and you can hear alarm sound, turn off the ignition, press [Yes].
 How to use SKP1000 to program key on Hyundai SONATA 8-9














11. Input the password
 How to use SKP1000 to program key on Hyundai SONATA 8-10














12. Check if the password is correct, press [Yes] to confirm.
 How to use SKP1000 to program key on Hyundai SONATA 8-11














13. The first smart key program successfully, and it will ask you if you program the next one, press [Yes] to confirm.
 How to use SKP1000 to program key on Hyundai SONATA 8-12














14. Insert the second smart key into the slot, you can hear the alarm sound, press [Yes].
 How to use SKP1000 to program key on Hyundai SONATA 8-13














15. Program key successfully, press [NO] to back.
 How to use SKP1000 to program key on Hyundai SONATA 8-14














With two new smart keys, you could start the car, if you need to add more keys, just
repeat the above steps.
